e-56CC
42 V DC · 350 mA · 495 mm
ELS14X157-01CFV18 · Bridgelux 11L-3BT · 24 V, Nutzerangabe 4 W/Platine; gesamt 166,67 mA, bei gleicher Aufteilung 55,56 mA/LED. Typische LED-Summe ohne thermische/optische Verluste; keine Modulmessung.
DE · PDF · 1 A4

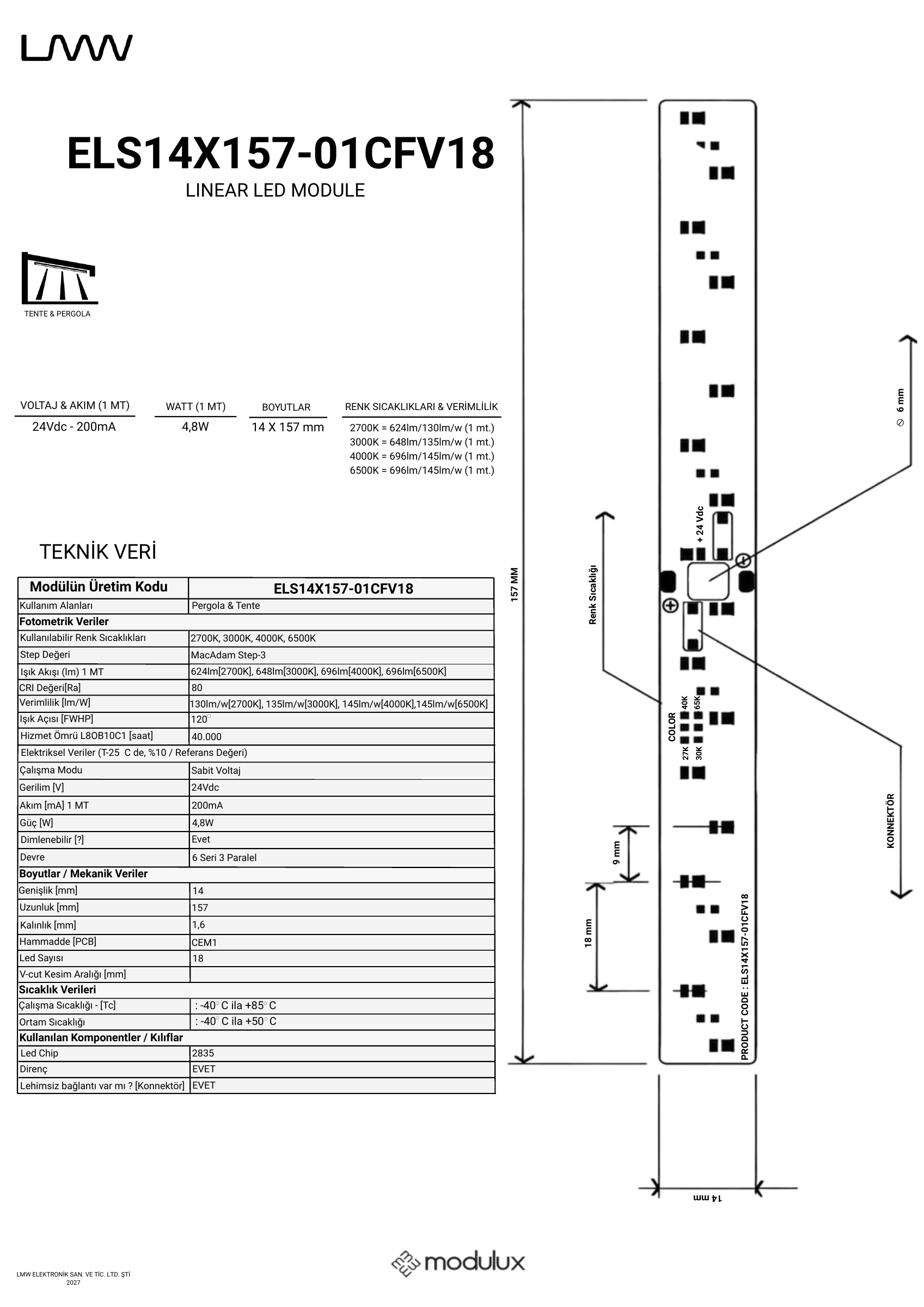

| Produktcode des Moduls | ELS14X157-01CFV18 |
|---|---|
| Schaltung / LED-Strom | 6S × 3P · Bridgelux 11L-3BT |
| Farbtemperaturen | 2700 / 3000 / 4000 / 6500 K |
| Lichtstrom (1 Platine) | 387 / 438 / 472 / 472 lm |
| CRI [Ra] | 80 |
| Leiterplattenmaterial | CEM-1 · 1.6 mm |
| TECHNISCHE DATEN | 24 V, Nutzerangabe 4 W/Platine; gesamt 166,67 mA, bei gleicher Aufteilung 55,56 mA/LED. Typische LED-Summe ohne thermische/optische Verluste; keine Modulmessung. |
| TYPISCHE LICHTVERTEILUNG DER LED | Bridgelux DS215-9, S.12 Abb.7; 60 mA, Tsp=25 °C. LED-Kurve, keine Modul-/Linsenmessung. |
